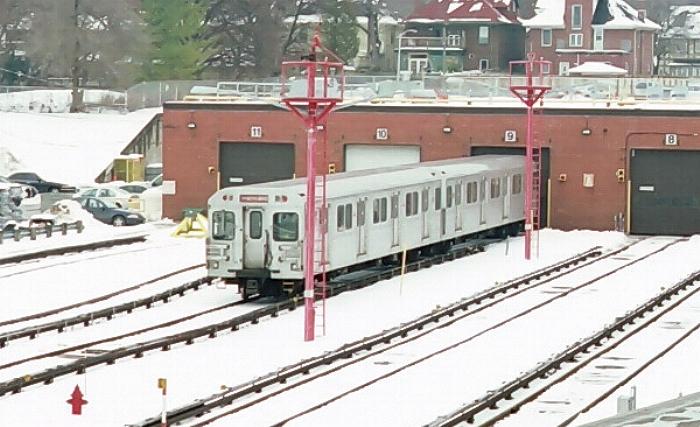

image072 TTC Subways & RT



Subway

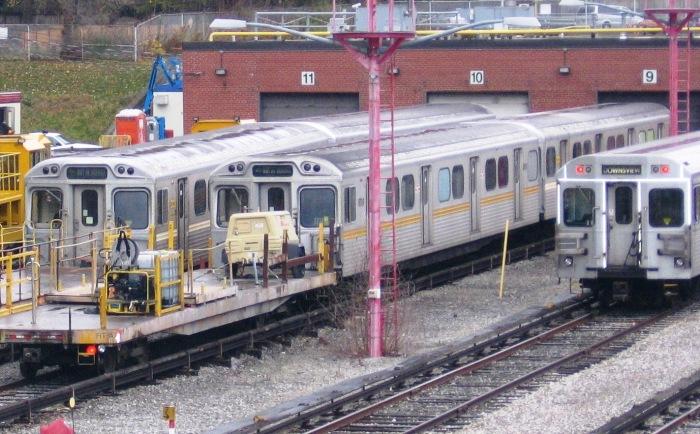

RT-9 and RT-10 are a pair of H-1 work cars, shown resting at the Davisville Yard along with H-1 work cars RT-38 and RT-39 on Nov. 24, 2010.  Both sets of cars were built between 1964 and 1965 and were used in revenue service until the late 1990s, when they were withdrawn and converted into garbage trains.  When the TTC discontinued garbage train service, these four cars became general utility trains.  RT-39 was scrapped in September 2011, but the other three are still in the TTC work fleet as of August 2012.


This H-4 train was spotted leaving Islington Station on January 24, 2011.  The H-4 subway cars were built by Hawker-Siddeley and introduced in 1974, and were the last non-air-conditioned subway cars ordered by the TTC, along with the last equipped with padded orange bench seats.

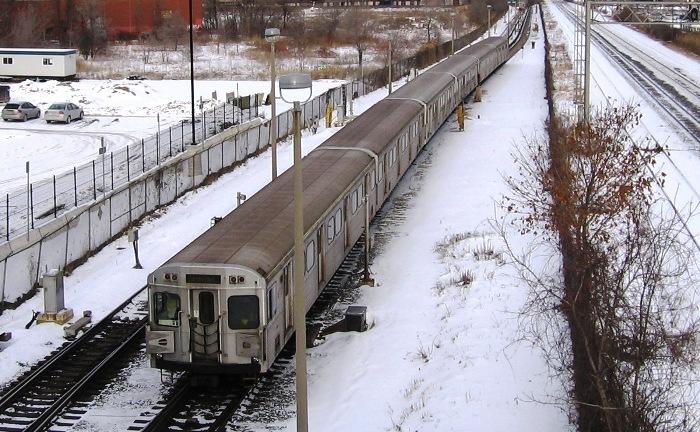

An H-4 train is shown approaching Kipling Station in Etobicoke on January 24, 2011.  Based out of Greenwood Yard, these subway trains were mostly used in peak-period service toward the end of their lives, and were found only on the Bloor-Danforth line.


An H-4 train is seen leaving Kipling Station while an H-6 train leaves Islington Station on January 24, 2011.

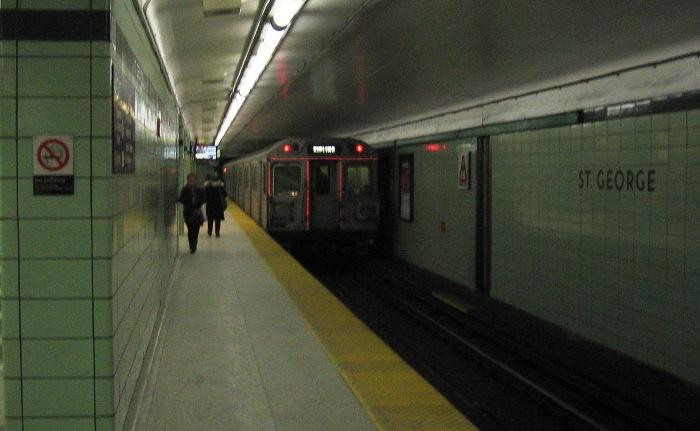

An H-4 train is shown leaving St. George Station on January 24, 2011.  The TTC kept the last of these trains in service until January 27, 2012, when there were enough of the new Toronto Rocket trains to allow the H-4 trains to be retired after 37 years of revenue service.

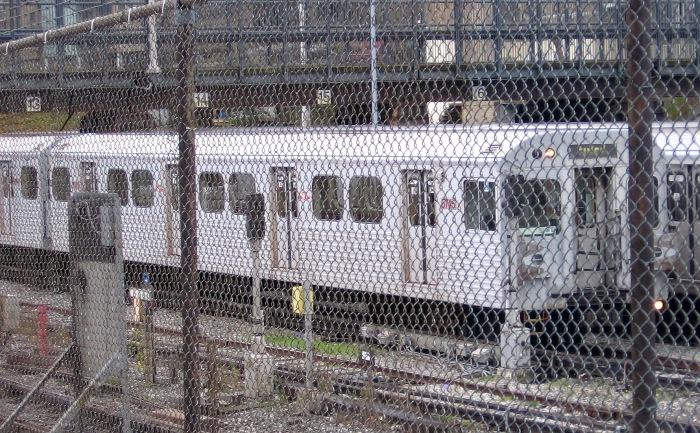

5745 was an H-5 series subway car, spotted resting at the Davisville Yard on Nov. 24, 2010.  The H-5 cars were built by Hawker-Siddeley of Thunder Bay and were introduced in 1976, making them the oldest subway cars in use by the TTC until the last train was taken out of service on June 14, 2013.

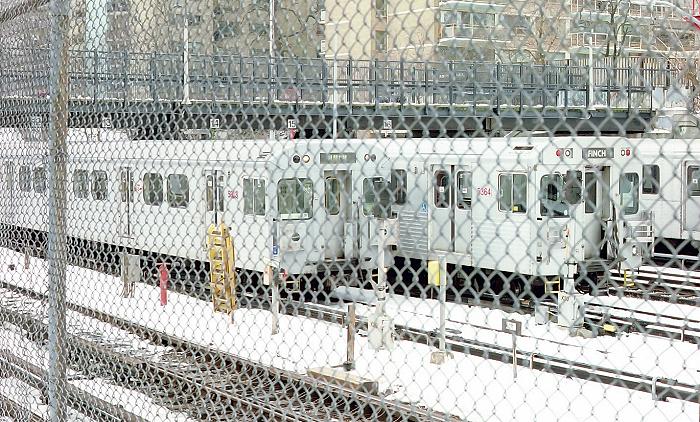

5803 was another H-5 series car, shown parked with 5364 at the Davisville Yard on Dec. 30, 2004.


An H-5 train is shown leaving Museum Station on September 6, 2009.  The Yonge-University-Spadina and Sheppard lines usually use T-1 and Toronto Rocket subway cars, while the Bloor-Danforth line uses H-6 and T-1 cars.

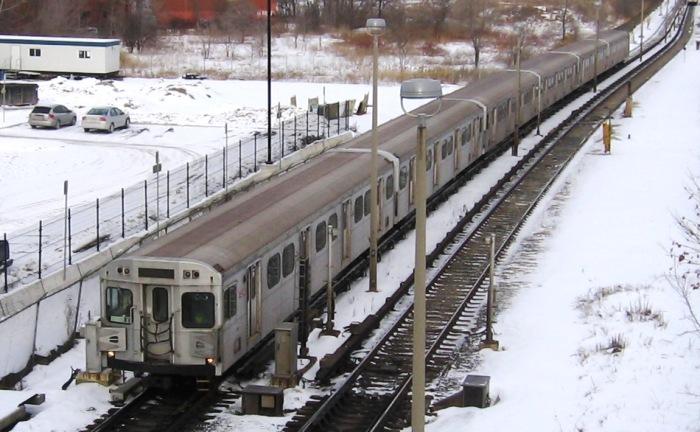

An H-6 subway train was spotted leaving Kipling Station on January 24, 2011.  These subway cars were built by the UTDC and entered TTC service in 1987.


Another H-6 train is shown approaching Kipling Station on January 24, 2011.

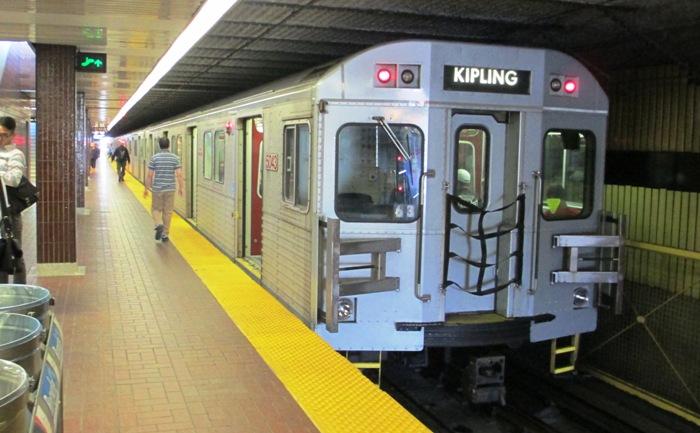

5043 is the last car of this T-1 series subway train, spotted at Kipling Station on August 4, 2013.  The T-1 cars, built by Bombardier Inc., entered service in 1996 and feature significantly wider doors to allow wheelchair access to the trains.

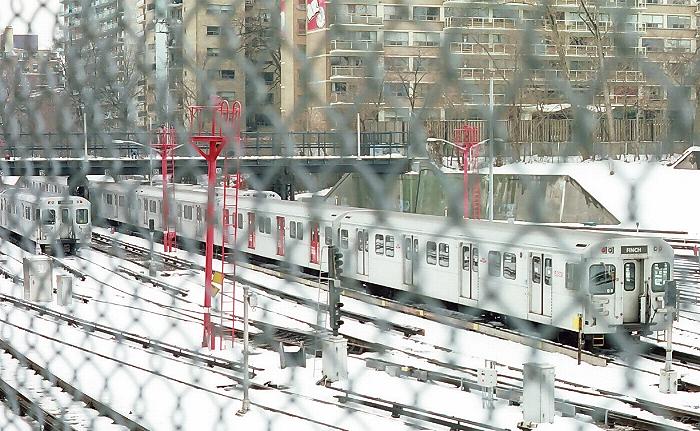

5253 is another T-1 series subway car, shown resting at the Davisville Yard on Dec. 30, 2004.

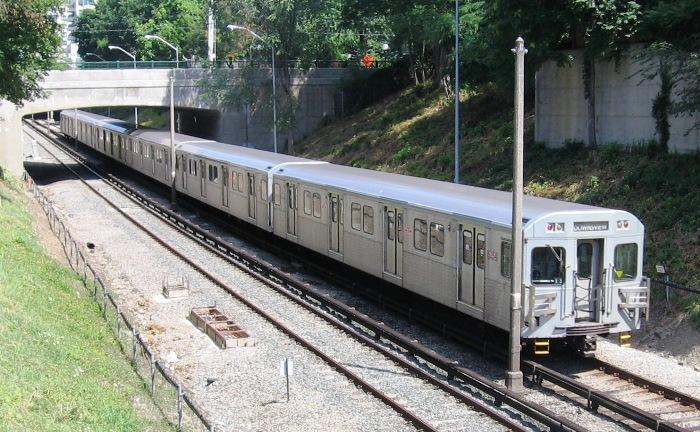

5254 is the last car of a six-car subway train seen leaving Rosedale Station on July 29, 2012.

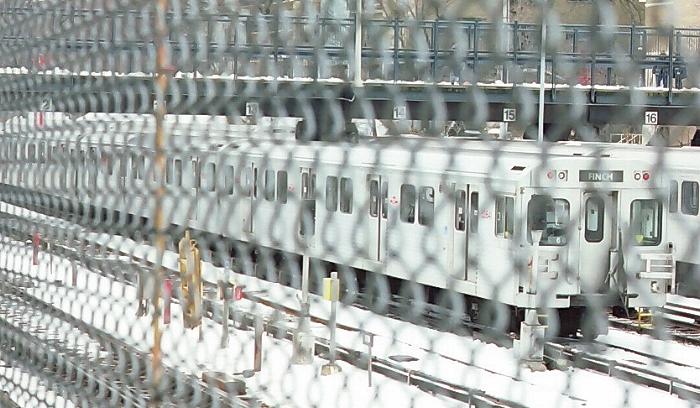

5364 is shown at the Davisville Yard on Dec. 30, 2004.  This car was part a second order of T-1 cars placed in 1998.


A train of T-1 cars leaves Davisville Station on Dec. 30, 2004.

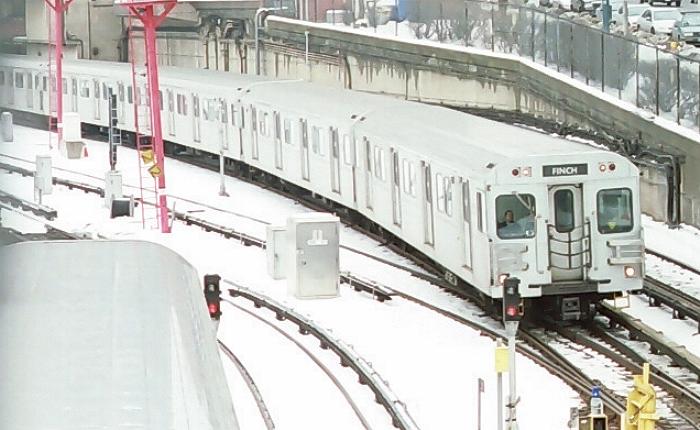

A train of T-1 cars on its way to Finch Station was spotted pulling into Davisville Station on Dec. 30, 2004.

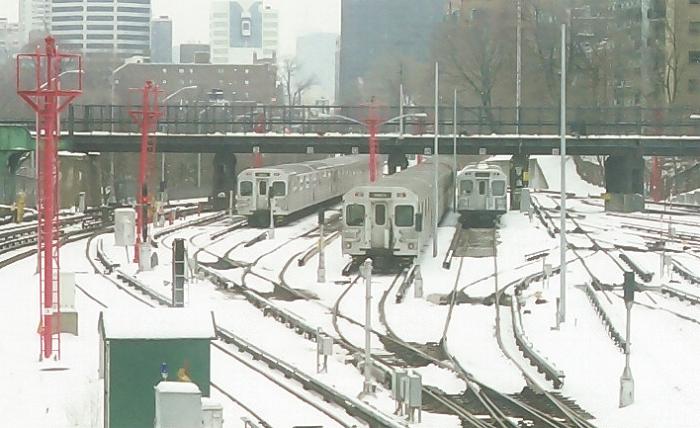

Two T-1 trains (left and centre) and an H-5 train rest at the Davisville Yard on Dec. 30, 2004.  Due to incompatible electrical systems, the T-1 cars cannot be used in service with the older vehicles, though they can be coupled for emergency towing.


Two T-1 cars are shown parked at the Davisville Yard.  This photo was taken on Dec. 30, 2004.

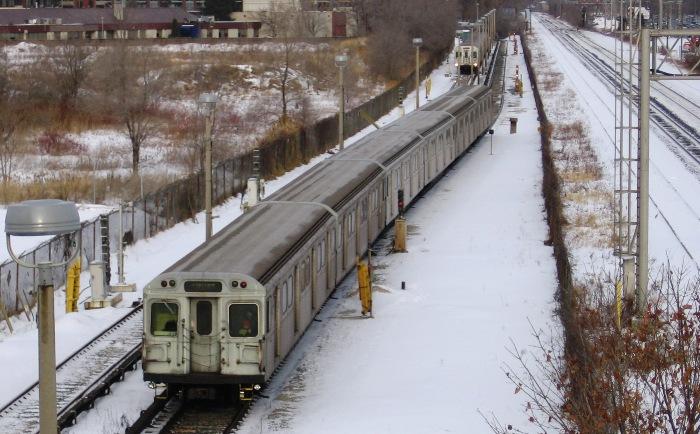

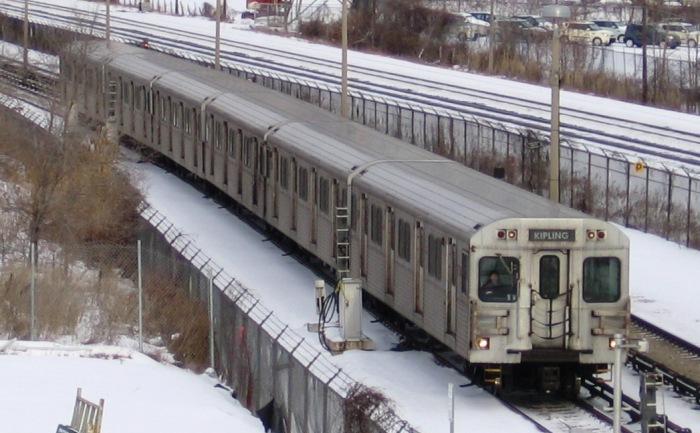

A T-1 subway train is shown approaching Kipling Station on January 24, 2011.

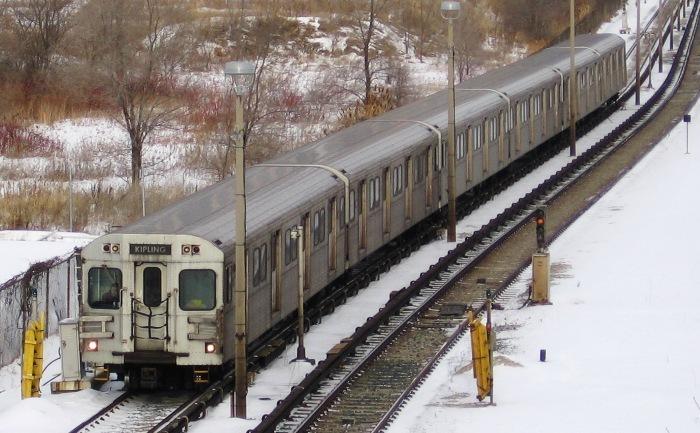

This T-1 train was spotted approaching Kipling Station on January 24, 2011.

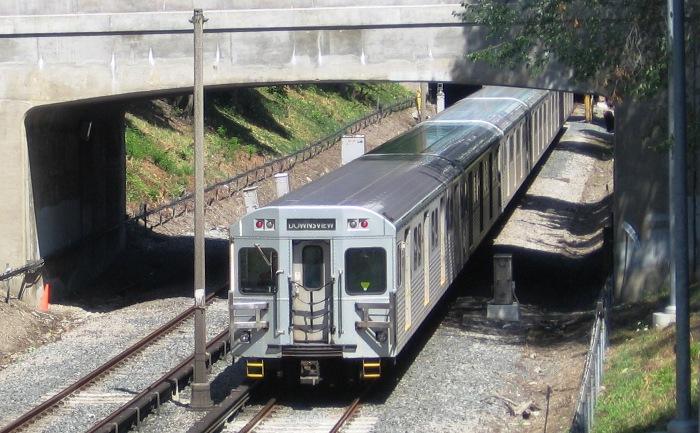

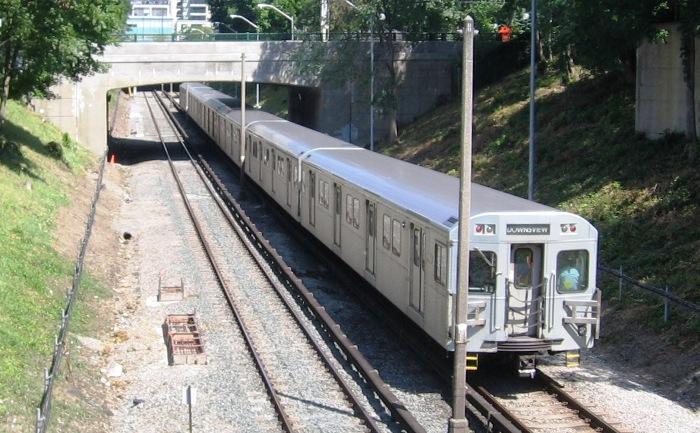

This T-1 subway train was seen leaving Rosedale Station on July 29, 2012.


A T-1 train is shown leaving Rosedale Station on July 29, 2012.  These subway cars were the newest in TTC service until the Toronto Rocket trains entered service in June 2011.

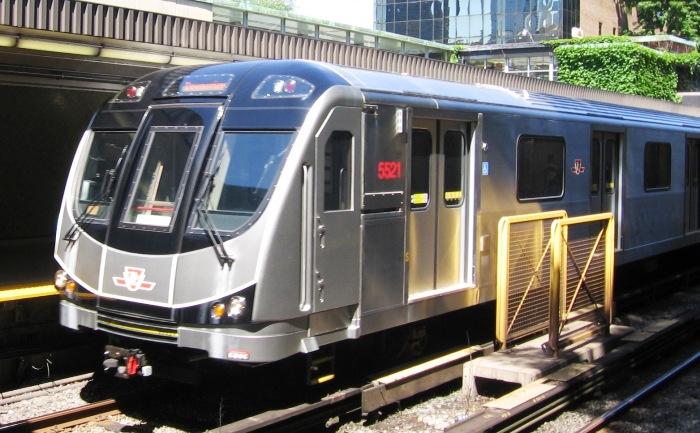

5521 is the lead car of a Toronto Rocket subway train, seen boarding passengers at Rosedale Station on July 29, 2012.  These trains, which were designated at T35A08 trains prior to the “Rocket” name being adopted, consist of fixed six-car train sets and feature open gangways between the cars, allowing for the free movement of passengers from one end of the train to the other.

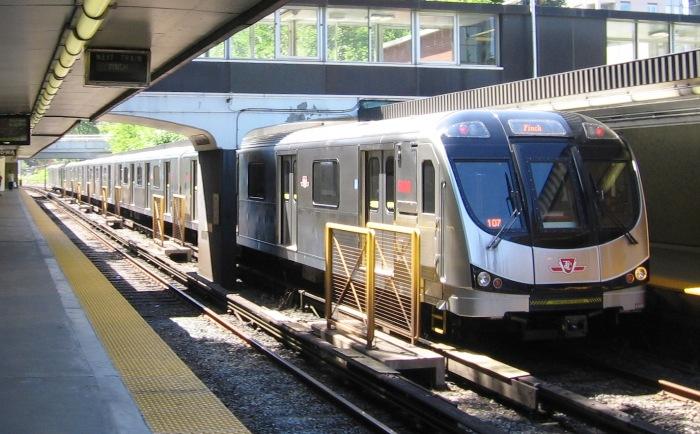

5526 is part of the same train as 5521, and is shown leaving Rosedale Station on July 29, 2012.  Under the Toronto Rocket numbering scheme, the train sets are numbered from xxx1 to xxx6, and the next train starts with the fleet number ending in “1”.  Therefore, this train is numbered 5521-5522-5523-5524-5525-5526, and numbers 5520, 5527, 5528, 5529 and 5530 are skipped.

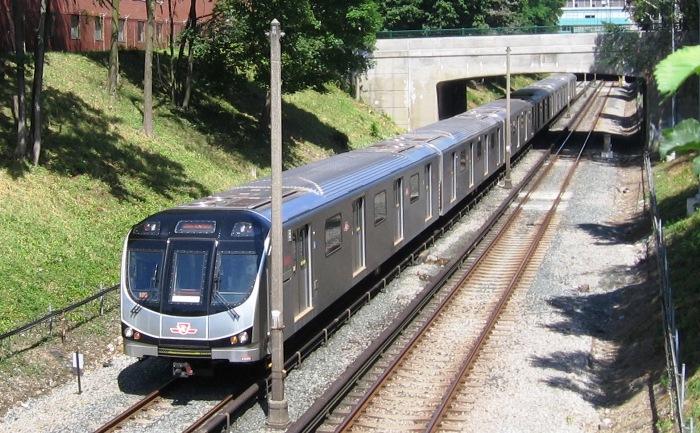

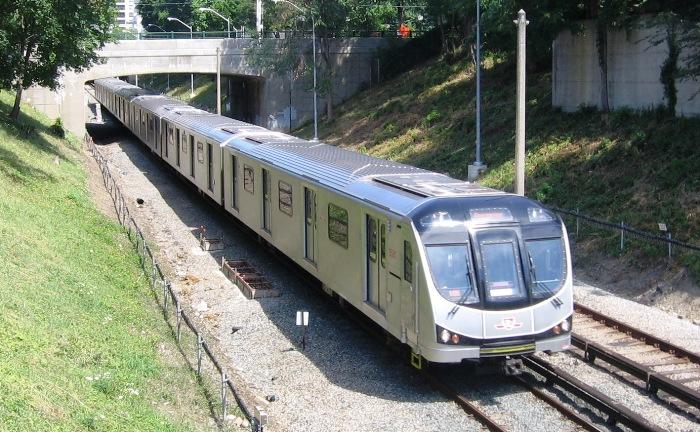

5581 is shown approaching Rosedale Station on July 29, 2012.  Because the TTC ordered 70 subway trains of six cars each, using the new numbering scheme, the cars will be numbered between 5381 and 6076, meaning that the TTC will reuse numbers from the H-1, H-2, H-4, H-5 and H-6 subway cars, along with New Flyer D901 buses.


A Toronto Rocket train is seen approaching Rosedale Station on July 29, 2012.  These trains were ordered to replace the H-4, H-5 and H-6 trains, some of which are being shipped to Nigeria to be used in the Lagos Rail Mass Transit project.  Thirty-nine trains had been delivered for use on the Yonge-University-Spadina line by August 2013, with the full delivery of all seventy train sets expected in mid-2014.



Scarborough RT

$RP1C7CZ

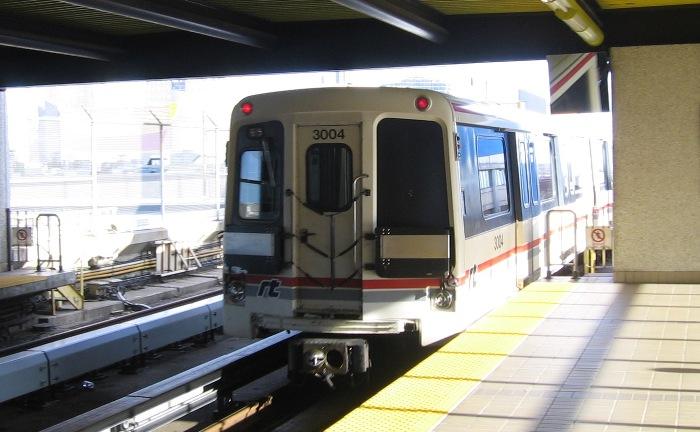

3004 is seen leaving Scarborough Centre Station on Dec. 20, 2011.  These Mark 1 ICTS cars, built by the Urban Transit Development Corp. between 1982 and 1986, are similar to the older cars used by the SkyTrain in Vancouver and the Detroit People Mover.

$RUTKOSU

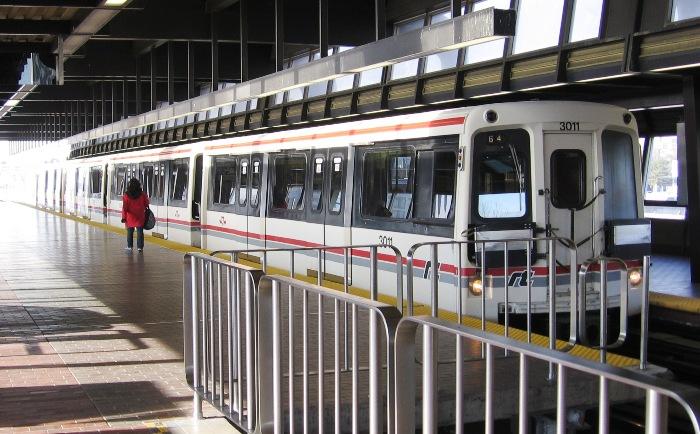

3011 is shown just after boarding riders at Kennedy Station on Dec. 20, 2011.

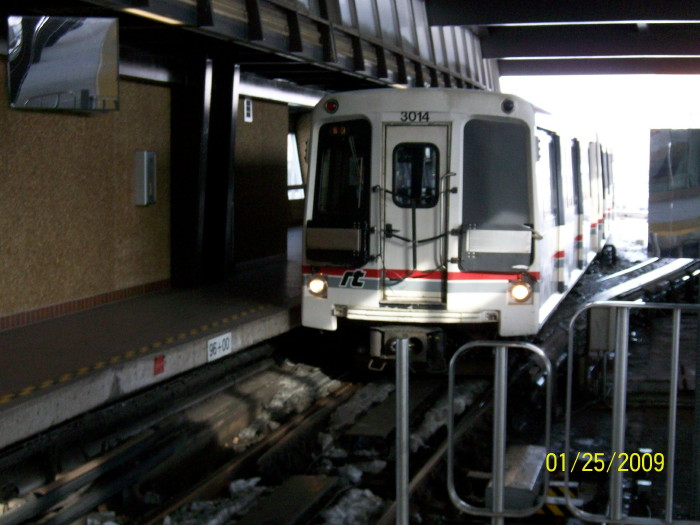

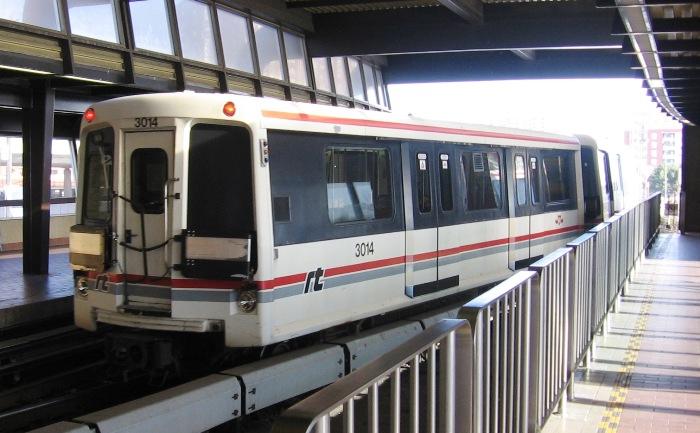

3014 was seen pulling into Kennedy Station on January 25, 2009. (Photo by Trevor H.)

$RCZAOG7

3014 is seen leaving Kennedy Station on Dec. 20, 2011.

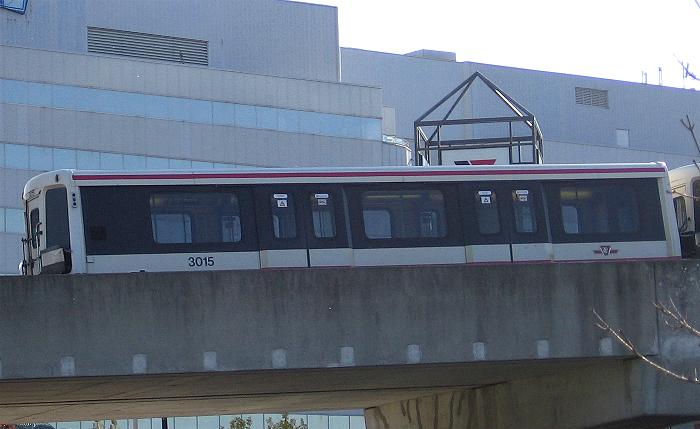

3015 is shown leaving Scarborough Centre Station en route to McCowan Station on Oct. 9, 2008.

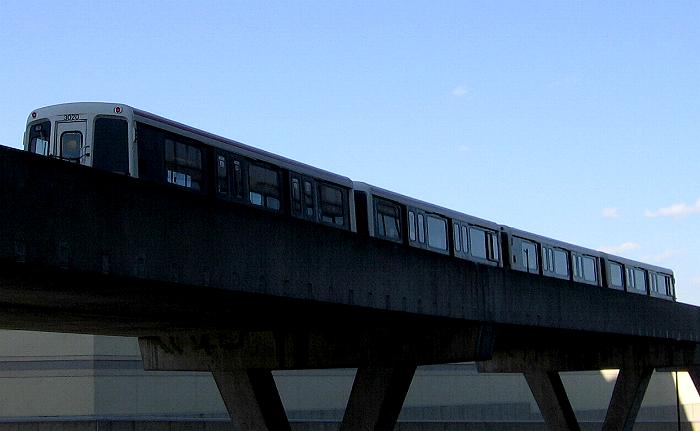

3020 was spotted arriving at Scarborough Centre Station on Oct. 9, 2008.
